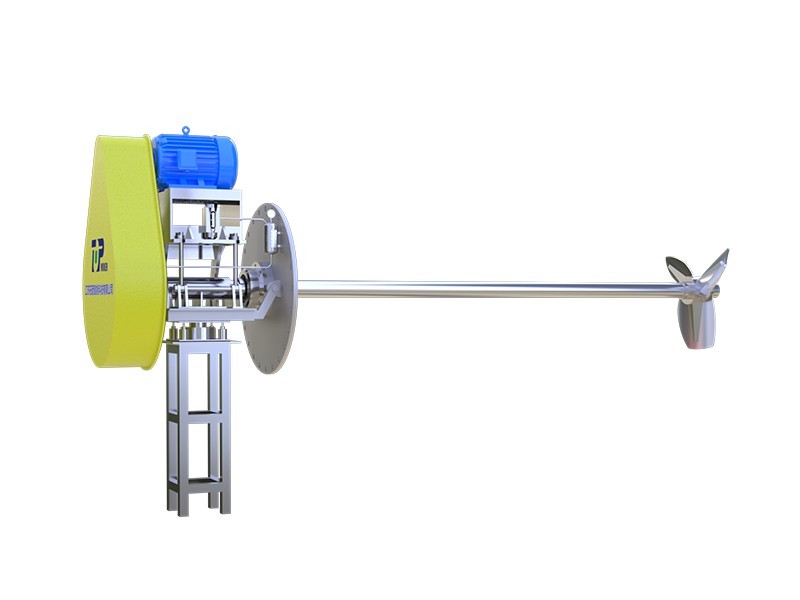

TOP3006 long-shaft fixed side-entry mixer
The TOP3006 long-shaft fixed side mixer is a device that mixes materials using a long shaft to drive mixing blades. It is widely used in the mixing of powder materials in metallurgy, mining, chemical, and building materials industries. Its working principle is to use a motor to drive a rotating shaft, causing the mixing blades on the shaft to mix and thus mix various materials evenly.
TOP3006 long-shaft fixed side-entry mixer
The TOP3006 long-shaft fixed-side mixer is a device that mixes materials using a long shaft to drive mixing blades. It is widely used in the mixing of powder materials in metallurgy, mining, chemical, and building materials industries. Its working principle is to use a motor to drive a rotating shaft, causing the mixing blades on the shaft to mix and blend various materials uniformly.
Structure:
● Motor: Provides power.
● Rotating shaft: Connects the motor and the mixing blades.
● Mixing blades: Installed on the rotating shaft, responsible for mixing materials.
● Fixed bracket: Ensures the stability and fixation of the mixer.
Application Scenarios:
This mixer is suitable for various scenarios requiring uniform mixing of powder materials, such as in metallurgy, mining, chemical, and building materials industries. It can mix various materials, such as cement, lime, and gypsum, to achieve ideal mixing results.
Advantages of Long-Shaft Mixers:
● Simple operation: Long-shaft mixers are easy to operate, requiring no complex personnel operation; simply set the mixing time.
● Good mixing effect: Long-shaft mixers can mix various materials uniformly, achieving ideal mixing results.
● Time saving: Long-shaft mixers can efficiently mix various materials, saving production time and improving production efficiency.
● Simple maintenance: Maintenance of long-shaft mixers is very simple; only periodic cleaning and maintenance are required, without requiring a large amount of manpower and material resources.
● Guaranteed quality: Long-shaft mixers use high-quality materials, ensuring their service life and stability.
In summary, the long-shaft mixer is a very efficient mixing device with advantages such as simple operation and good mixing effect. It has been widely used in industrial production and is expected to play an even more important role in various fields in the future.
| Application Rod Mixer Dry matter content up to 14% Substrate temperature up to 70°C | Bearings 2 conical roller bearings to absorb axial forces Mechanical seal Silicon carbide/Silicon carbide, any direction of rotation Center bearing of the transmission shaft (sliding bearing) |
| Technical Data Stirrer length 2.5 / 3.0 meters Rod Ø 101.6 x 4.0 or x 5.7 mm, stainless steel 304 Sound pressure level 75 dB(A) Installation height at liquid level up to 8 meters For deeper information, please inquire. Oil cup for checking the airtightness of the mixer Optional: Rubber seal Ø 200 mm, galvanized Optional: PTO with tractor protection (maximum blade HD+ 700) The mixer is completely modular in design POM protection to reduce friction | Blades 3-blade high-efficiency dynamically balanced blades FR3: 11.0 kW 400 rpm Blade HD+ 580 FR4: 15.0 kW 400 rpm Blade HD+ 620 FR5: 18.5 kW 400 rpm Blade HD+ 660 Material Stainless steel 304, stainless steel 316 or hardened steel, For special materials, please inquire. |
| Motor 11.0 / 15.0 / 18.5 kW: 4-pole 400 V, 50 Hz, please inquire for special models Thermistor Overheat protection Explosion-proof motor Ex II 3G Ex nA IIC T3 Gc Special design 13.5 kW E II 2G Ex eb IIC T3 Gb Optional: Rain cover (stainless steel 304) | Explosion-proof area Explosion-proof Zone 2 (outside tank) Explosion-proof Zone 1 (inside tank) Special design FR4 13.5 kW suitable for explosion-proof Zone 1 (outside tank) Mechanical component classification: C∈ Ex II 2G Ex h IIA T3 Gb |
| Gear Spur gear, helical gear, low noise, reduction ratio i = 3.69 Self-circulating gear oil SAE85W-140 / API GL-5 Oil change required every 2,000 operating hours | Control (optional) Star-delta starter Soft start or variable frequency Delivery does not include cables |
| Pool size | Model | Speed (r/min) | Power (kw) | Impeller diameter (mm) | Axial force (kN) | Flow rate (m/s) |
| Φ19*7.5 | TOP3006/1 | 400 | 11 | 580 | 2.2 | 3.4 |
| Φ23*7.5 | TOP3006/2 | 400 | 15 | 620 | 2.6 | 3.9 |
| Φ29*7.5 | TOP3006/3 | 400 | 18.5 | 660 | 3.25 | 4.3 |
