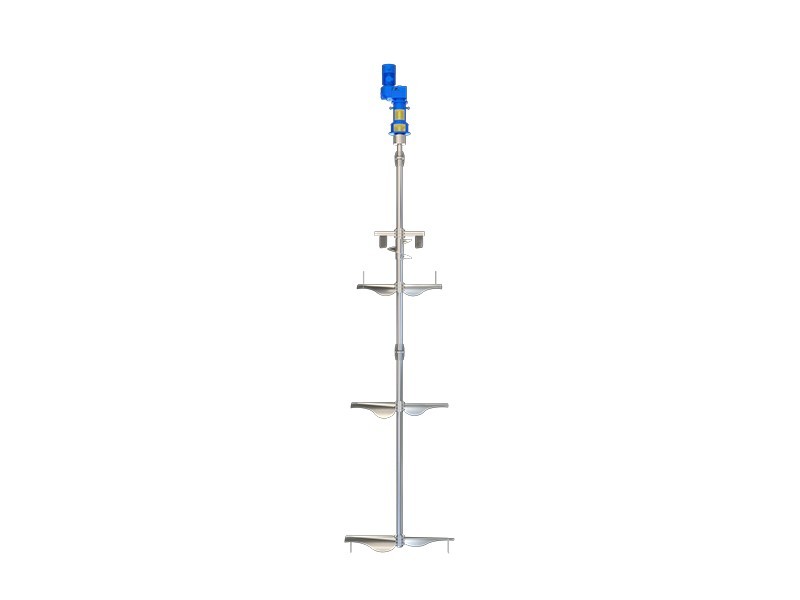

TOP3001 anaerobic stirrer
Based on Top's years of experience and proprietary technology, and applying advanced measurement and analysis techniques, we have designed a high-efficiency impeller with excellent mixing performance for use in our SFJ series mixers.
TOP3001 anaerobic stirrer
Based on years of experience and proprietary technology, Top uses advanced measurement and analysis techniques to design high-efficiency impellers with excellent mixing performance for our SFJ series mixers.
● Top TOP3001 mixers offer vertical mixing from 18.5KW to 75KW. All products are rigorously tested by Top engineers to ensure high reliability.
● Simple and robust mechanical structure for easy operation, maintenance, and repair, all designed with the user in mind.
● The unique impeller design significantly increases the discharge rate.
● Multiple shaft seal types meet the needs of different materials and operating conditions.
● Secure motor mounting significantly reduces vibration.
● High-efficiency hard-tooth surface gear transmission, featuring heat resistance, durability, and low noise.
● Deep groove ball bearing system ensures long-lasting use without lubrication.
Impeller Configuration
The TOP3001 gear mixer comes standard with an HJ impeller (vertical). In addition to the standard impeller, Top can provide more suitable impeller types based on the user's specific needs, ensuring optimal mixing performance.
● Weights in the table are approximate.
● Dimension L in the table is determined according to the user's container dimensions.
● Dimension DJ data in the table is determined by Top based on the user's mixing purpose, mixing capacity, and physical parameters. Actual data shall prevail.
● The weight of the motor is the approximate weight of a standard indoor motor and may vary depending on the motor manufacturer and type.
Remarks:
● Weights in the table are approximate and do not include the weight of the hanging and anchor bolts.
● Flange dimensions in the table can be replaced with European or American standards.
● The weight of the motor in the table is the approximate weight of a standard indoor motor and may vary depending on the manufacturer and type of motor selected. Please refer to the actual design.
● If the mixing tank wall is too thin and the strength is insufficient, please use reinforcing ribs or other auxiliary means.
| Tank Dimensions (m) | Model | Effective Volume (L) | Speed (r/min) | Power (kW) | Weight (T) |
| Φ10*13 | TOP3001/1 | 1000 | 15 | 7.5 | 2.5 |
| Φ14*14 | TOP3001/2 | 2000 | 15 | 11 | 3 |
| Φ16*16 | TOP3001/3 | 3000 | 15 | 15 | 4 |
| Φ19*17 | TOP3001/4 | 4000 | 15 | 18.5 | 4.5 |
| Φ19*19 | TOP3001/5 | 5000 | 15 | 22 | 5 |
| Φ20*20 | TOP3001/6 | 6000 | 15 | 30 | 5.5 |
| Φ22*22 | TOP3001/7 | 8000 | 15 | 37 | 6.5 |
| Φ24*23 | TOP3001/8 | 10000 | 13 | 45 | 7.5 |
