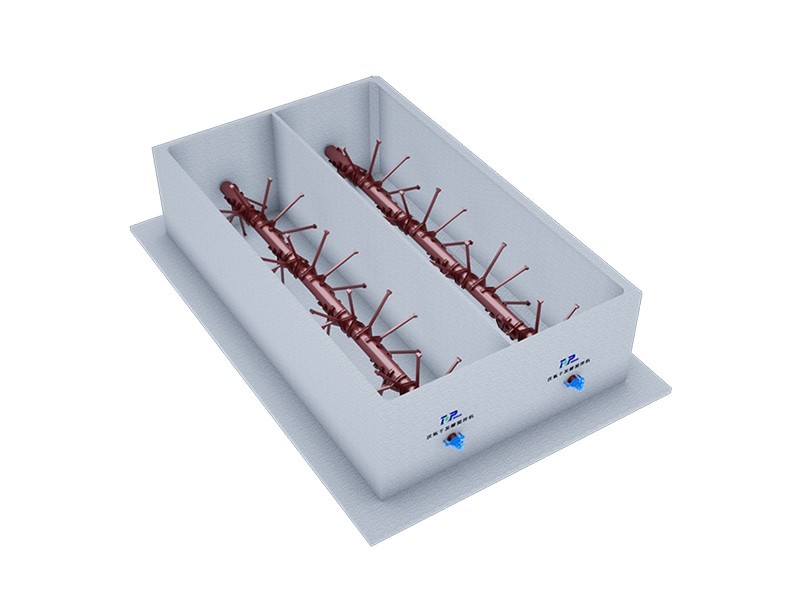

TOP3002 horizontal anaerobic fermentation stirrer
Based on years of experience and proprietary technology, Top uses advanced measurement and analysis techniques to design high-efficiency impellers with excellent mixing performance for our TOP3002 mixer.
TOP3002 horizontal anaerobic fermentation stirrer
Based on Top's years of experience and proprietary technology, and utilizing advanced measurement and analysis techniques, a high-efficiency impeller with excellent mixing performance has been designed for use in our TOP3002 mixer.
● Top GFJ mixers offer vertical mixing from 3KW to 18.5KW. All products are rigorously tested by Top engineers to ensure high reliability.
● Simple and robust mechanical structure, easy to operate, maintain and repair, all for the user's consideration.
● The unique impeller design significantly increases the discharge volume.
● Multiple shaft seal types meet different material and operating conditions.
● Secure motor mounting significantly reduces vibration.
● High-efficiency hard-tooth surface gear transmission, featuring heat resistance, durability, and low noise.
● Deep groove ball bearing system ensures long-lasting use without lubrication.
Impeller Configuration
The TOP3002 gear mixer is standardly configured with a GX impeller (vertical). In addition to the standard impeller, Top can also provide more suitable impeller types based on the user's actual situation to ensure better mixing results for the user.
● The weight in the table is approximate.
● The dimensions (m³) in the table are determined according to the user's container dimensions.
● The DJ dimensions in the table are determined by Top Company based on the user's mixing purpose, mixing capacity, and physical parameters; the actual dimensions shall prevail.
● The weight of the motor is the approximate weight of a standard indoor motor, which may vary depending on the motor's approximate weight, manufacturer, and type.
Remarks:
● The weight in the table is approximate and does not include the weight of the hanging and anchor bolts.
● The flange dimensions in the table can be replaced with European or American standards.
● The weight of the motor in the table is the approximate weight of a standard indoor motor, which may vary depending on the manufacturer and type of motor selected; please refer to the actual design.
● If the mixing tank wall is too thin and the strength is insufficient, please use reinforcing ribs or other auxiliary means.
| Tank Dimensions (m) | Model | Effective Volume (m³ ) | Speed (r/min) | Power (kW) | Weight per Unit (T) |
| 10*7*7 | TOP3002/1 | 450 | 3 | 3 | 15 |
| 13*7*7 | TOP3002/2 | 600 | 3 | 5.5 | 20 |
| 16*8*8 | TOP3002/3 | 1000 | 3 | 11 | 35 |
| 20*10*10 | TOP3002/4 | 2000 | 3 | 18.5 | 40 |
| 30*10*10 | TOP3002/5 | 3000 | 3 | 22 | 50 |
