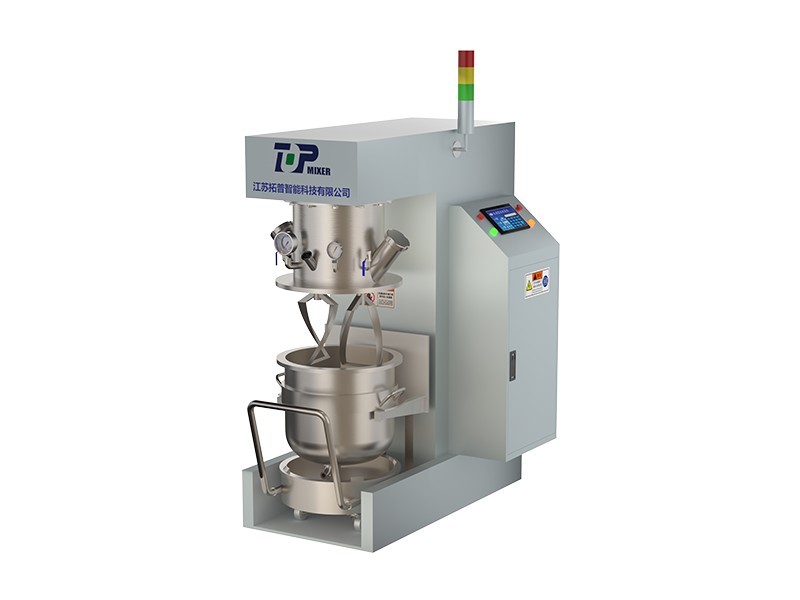

TOPH2012 series ZXJ pilot planetary mixer
The ZXJ pilot-scale planetary mixer is a new type of high-efficiency mixing equipment for chemical homogenization. It has a very large output torque and is especially suitable for materials with medium to high viscosity and high thixotropy (such as adhesives, silicone, lithium battery slurries, etc.) to achieve very thorough mixing.
TOPH2012 series ZXJ pilot planetary mixer
The ZXJ pilot planetary mixer is a new type of high-efficiency chemical homogenizing and mixing equipment. It has a large output torque and is especially suitable for mixing materials with medium to high viscosity and high thixotropy (such as adhesives, silicone, lithium battery slurries, etc.) very thoroughly.
This machine adopts unique blade design, advanced mixing mode and transmission principle and other innovative technologies. The stirring paddle and dispersing shaft rotate simultaneously, stirring without dead corners, materials are tumbling and flowing at high speed vertically and horizontally, and the dispersion disc continuously shears and disperses the materials, so that the materials can achieve uniform effect in a very short time.
【Material Viscosity】： ≤1000000cps
【Production Capacity】： 2-8L
【Application Fields】： Suitable for dispersion and mixing of materials in coatings, putty, inks, adhesives, energy, electronics, pharmaceuticals, cosmetics, food and other industries.
【Applicable Materials】： Materials with viscosity below 1000000 cps and solid content below 90%, such as battery slurries, solder paste, ceramic slurries, silicone ink, sealant, structural adhesive, soft ointment, jam and more than a thousand kinds of materials.
Technical Parameters
| Model | Effective Volume (L) | Design Capacity (L) | Mixing Tank Dimensions (mm) | Mixing Power (kw) | Revolution Speed (rpm) | Rotation Speed (rpm) | Dispersion Power (kw) | Dispersion Speed (rpm) | Linear Velocity (m/s) |
| TOPH2012-30 | 30 | 44 | Φ400*350 | 4 | 0-34 | 0-70 | 5.5 | 0-4000 | 21 |
| TOPH2012-60 | 60 | 88 | Φ500*450 | 5.5 | 0-34 | 0-68 | 7.5 | 0-3300 | 21 |
Note:
*When selecting a model, the viscosity and characteristics of the product should be considered. Please contact our sales engineer.
*This table does not include all products. For more information, please contact our sales engineer.
