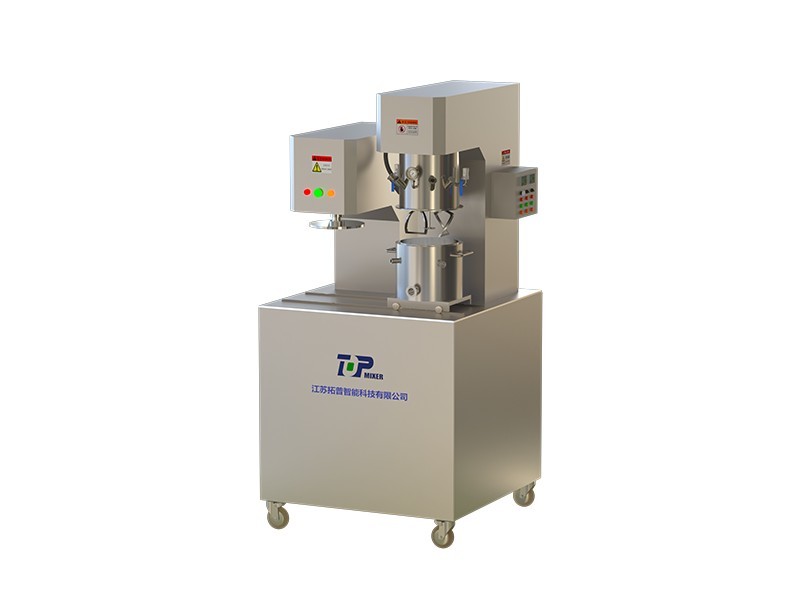

TOPH2011 series SXJ experimental double planetary mixer
The laboratory double-planetary mixer is a new and efficient mixing equipment developed by Top Company to meet the needs of colleges and universities, scientific research units, and factory laboratories. It is suitable for the dispersion and mixing of solid-liquid and liquid-liquid phases; suitable for products with high viscosity, such as adhesives, silicone, and lithium battery slurries; the equipment is also equipped with wall-scraping and bottom-scraping functions, with no dead angles and no residue; the equipment is equipped with an extrusion device and sliding guide rails to achieve integrated mixing and discharging operations.
TOPH2011 series SXJ experimental double planetary mixer
The laboratory double-planetary mixer is a new and efficient mixing equipment developed by Top Company to meet the needs of colleges and universities, scientific research units, and factory laboratories. It is suitable for the dispersion and mixing of solid-liquid and liquid-liquid phases; suitable for products with high viscosity, such as adhesives, silicone, and lithium battery slurries; the equipment is also equipped with wall scraping and bottom scraping functions, with no dead corners and no residue; the equipment is equipped with an extrusion device and sliding guide rails to achieve integrated mixing and discharging operations.
Material Viscosity: ≤1000000cps
Production Capacity: 2-8L
Application Fields: Suitable for the dispersion and mixing of materials in industries such as coatings, putty, inks, adhesives, energy, electronics and electrical appliances, pharmaceuticals, cosmetics, and food.
Applicable Materials: Materials with viscosity below 1,000,000 cps and solid content below 90%; such as battery slurries, solder pastes, ceramic slurries, silicone inks, sealants, structural adhesives, soft ointments, jams, and more than a thousand other materials.
Applicable Material Range: Ternary materials, positive and negative electrode lithium battery materials, powders, solvents, solutions, slurries, etc.
Technical Parameters
| Model | Effective Volume (L) | Design Volume (L) | Mixing Tank Dimensions (mm) | Mixing Power (kw) | Revolution Speed (rpm) | Rotation Speed (rpm) | Dispersion Power (kw) | Dispersion Speed (rpm) | Linear Velocity (m/s) |
| TOPH2011-5 | 5 | 7.4 | Φ250*150 | 1.5 | 0-40 | 0-86 | 1.5 | 0-5800 | 16.7 |
| TOPH2011-10 | 10 | 14 | Φ300*200 | 2.2 | 0-42 | 0-72 | 2.2 | 0-5000 | 18.3 |
| TOPH2011-20 | 20 | 28 | Φ350*300 | 3 | 0-42 | 0-72 | 4 | 0-4000 | 21 |
Note:
*When selecting a model, the viscosity and characteristics of the product should be considered. Please contact our sales engineer.
*This table does not include all products. For more information, please contact our sales engineer.
