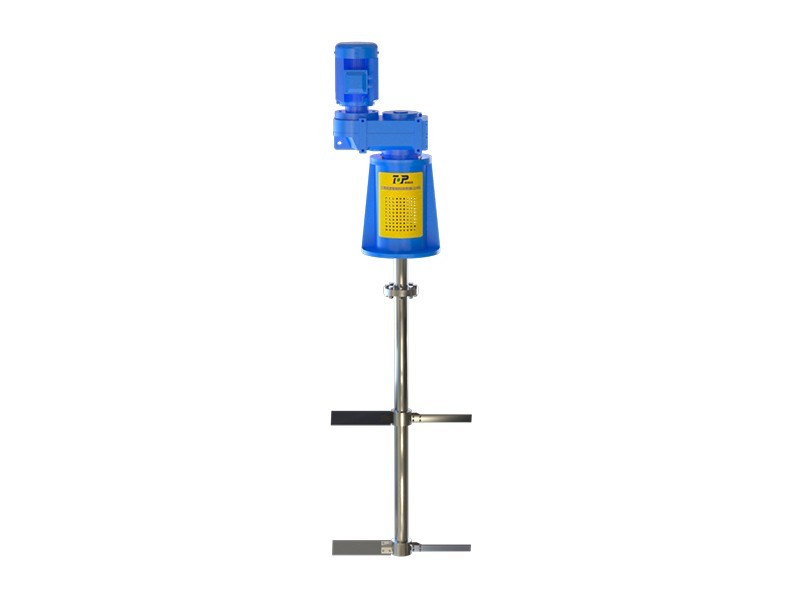

TOP1002 flocculator mixer
Based on Top's years of experience and unique technology, and applying advanced measurement and analysis techniques, a high-efficiency impeller with excellent mixing effect is designed and used in our TOP1002 mixer.
● Top's TOP1002 mixer can provide vertical mixing from 0.37KW to 45KW. All products are rigorously tested by Top engineers to ensure high reliability.
● Simple and compact mechanical structure, easy to operate, maintain and repair, all for the user's consideration
● The unique impeller form significantly increases the discharge volume.
● Various shaft seal types meet different materials and operating conditions
● The firm motor fixing greatly reduces vibration.
● High-efficiency hard tooth surface gear transmission, with the characteristics of heat resistance, durability, and low noise
● Deep groove ball bearing system. Ensures long-term use without lubrication.
Impeller configuration
The TOP1001 gear mixer is configured with an XJ impeller. In addition to the standard impeller configuration, Top can also provide users with more suitable impeller forms based on the actual situation of the users to ensure better mixing effect for the users.
● The weight in the table is approximate. It does not include the weight of the stirring shaft and impeller inside the container.
● The dimension L in the table is determined according to the user's container size.
● The dimension DJ data in the table is determined by Top Company according to the user's mixing purpose, mixing capacity and physical parameters, and the actual data shall prevail.
● The weight of the motor is the approximate weight of a common indoor motor, which may vary depending on the approximate weight of the motor, the manufacturer and type of the motor.
Remarks:
● The weight in the table is approximate and does not include the weight of the hanging and anchor bolts.
● The flange dimensions in the table can be replaced by European and American standards.
● The weight of the motor in the table is the approximate weight of a common indoor motor, which may vary depending on the manufacturer and type of motor selected. Please refer to the actual design.
| Pool size | Model | Speed (r/min) | Power (kw) | Installation dimensions | ||||||
| D | D1 | N-∅Z | H | S | L | DXJ | ||||
| 1*1*1.5 | TOP1002/30 | 30~60 | 0.37~1.5 | 315 | 285 | 8-φ18 | 112 | 45 | 1200 | DXJ30 |
| 1.5*1.5*3.5 | TOP1002/45 | 30~60 | 1.1~2.2 | 360 | 320 | 8-φ18 | 128.1 | 60 | 2800 | DXJ45 |
| 1.8*1.8*4 | TOP1002/55 | 30~60 | 1.5~3.0 | 435 | 400 | 12-φ18 | 136 | 70 | 3000 | DXJ55 |
| 2*2*4 | TOP1002/55 | 30~60 | 2.2~4.0 | 435 | 400 | 12-φ18 | 159.5 | 70 | 3000 | DXJ55 |
| 2.5*2.5*4.5 | TOP1002/55 | 30~60 | 3.0~5.5 | 435 | 400 | 12-φ18 | 200 | 75 | 3300 | DXJ55 |
| 3*3*5 | TOP1002/65 | 30~60 | 4.0~7.5 | 460 | 420 | 12-φ18 | 246.7 | 80 | 3500 | DXJ65 |
| 4*4*5 | TOP1002/65 | 30~60 | 5.5~11.0 | 460 | 420 | 12-φ18 | 285 | 85 | 3500 | DXJ65 |
| 5*5*6.5 | TOP1002/80 | 30~60 | 7.5~15 | 495 | 455 | 12-φ18 | 332.4 | 90 | 4700 | DXJ80 |
| 8*8*6.5 | TOP1002/90 | 30~60 | 11~18.5 | 555 | 510 | 12-φ23 | 382.6 | 100 | 4700 | DXJ90 |
| 10*10*8 | TOP1002/100 | 30~60 | 18.5~22 | 620 | 560 | 16-φ23 | 447 | 120 | 6000 | DXJ100 |
