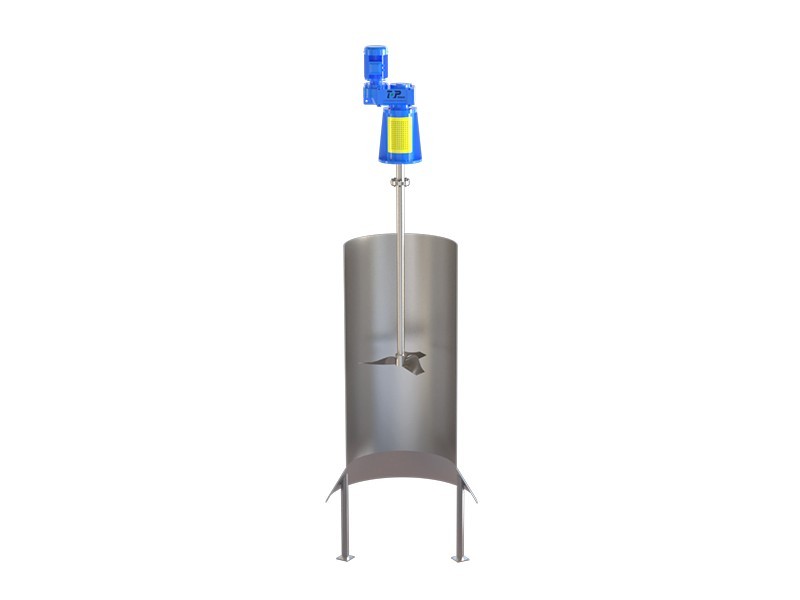

TOP1003 flocculator mixer
Based on years of experience and proprietary technology, and utilizing advanced measurement and analysis techniques, Top has designed a high-efficiency impeller with excellent mixing performance for use in our DL series mixers.
● Top TOP1003 mixers offer vertical mixing from 0.37KW to 45KW. All products are rigorously tested by Top engineers to ensure high reliability.
● Simple and compact mechanical structure, easy to operate, maintain and repair, all for the user's consideration.
● The unique impeller design significantly increases the discharge volume.
● Multiple shaft seal types meet different material and operating conditions.
● The firm motor mounting significantly reduces vibration.
● High-efficiency hard-tooth surface gear transmission, featuring heat resistance, durability, and low noise.
● Deep groove ball bearing system. Ensures long-term use without lubrication.
Impeller Configuration
The TOP1003 gear mixer is configured with a GX impeller. In addition to the standard impeller configuration, Top can also provide users with more suitable impeller types based on their actual needs, ensuring better mixing results for the user.
● The weight in the table is approximate. It does not include the weight of the agitator shaft and impeller inside the container.
● The dimension L in the table is determined according to the user's container size.
● The DJ data in the table is determined by Top based on the user's mixing purpose, mixing capacity, and physical parameters, and the actual data shall prevail.
● The weight of the motor is the approximate weight of a common indoor motor, which may vary depending on the motor's approximate weight, manufacturer, and type.
Remarks:
● The weight in the table is approximate and does not include the weight of the hanging and anchor bolts.
● The flange dimensions in the table can be replaced with European and American standards.
● The weight of the motor in the table is the approximate weight of a common indoor motor, which may vary depending on the manufacturer and type of motor selected. Please refer to the actual design.
| Tank Dimensions | Model | Speed (r/min) | Power (kw) | Installation Dimensions | ||||||
| D | D1 | N-∅Z | H | S | L | DXJ | ||||
| 1.5*1.5*3.5 | TOP1003/35 | 30~60 | 1.1~2.2 | 340 | 295 | 8-φ18 | 112 | 50 | 1200 | DXJ35 |
| 1.8*1.8*4 | TOP1003/45 | 30~60 | 1.5~3.0 | 360 | 320 | 8-φ18 | 128.1 | 60 | 2800 | DXJ45 |
| 2*2*4 | TOP1003/55 | 30~60 | 2.2~4.0 | 435 | 400 | 12-φ18 | 136 | 70 | 3000 | DXJ55 |
| 2.5*2.5*4.5 | TOP1003/55 | 30~60 | 3.0~5.5 | 435 | 400 | 12-φ18 | 159.5 | 75 | 3000 | DXJ55 |
| 3*3*5 | TOP1003/65 | 30~60 | 4.0~7.5 | 460 | 420 | 12-φ18 | 200 | 80 | 3300 | DXJ65 |
| 4*4*5 | TOP1003/65 | 30~60 | 5.5~11.0 | 465 | 420 | 12-φ18 | 246.7 | 85 | 3500 | DXJ65 |
| 5*5*6.5 | TOP1003/80 | 30~60 | 7.5~15 | 495 | 455 | 12-φ18 | 285 | 90 | 3500 | DXJ80 |
| 8*8*6.5 | TOP1003/90 | 30~60 | 11~18.5 | 555 | 510 | 12-φ23 | 332.4 | 100 | 4700 | DXJ90 |
| 10*10*8 | TOP1003/100 | 30~60 | 18.5~22 | 620 | 560 | 16-φ23 | 382.6 | 120 | 4700 | DXJ100 |
