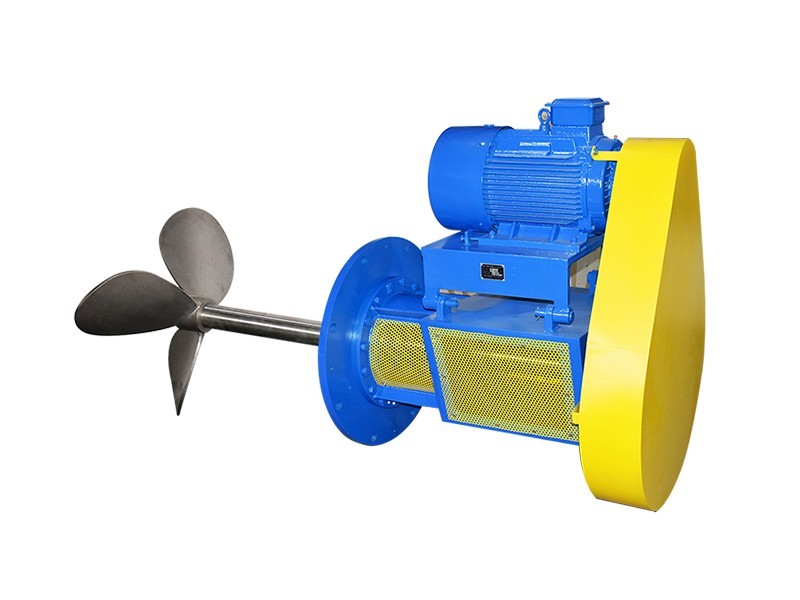

TOP3004 side-entry belt drive mixer
Based on Top's years of experience and proprietary technology, and applying advanced measurement and analysis techniques, we have designed a high-efficiency impeller with excellent mixing performance for use in our CP-type mixers.
TOP3004 side-entry belt drive mixer
Based on Top's years of experience and proprietary technology, and utilizing advanced measurement and analysis techniques, we have designed a high-efficiency impeller with excellent mixing effects for use in our CP-type mixers.
● Top TOP3004 mixers offer side-mounted stirring from 0.55KW to 30KW. All products are rigorously tested by Top engineers to ensure high reliability.
● Simple and compact mechanical structure, easy to operate, maintain and repair, all for the user's consideration.
● The unique impeller design significantly increases the discharge volume.
● Multiple shaft seal types meet different material and operating conditions.
● The firm motor mounting significantly reduces vibration.
● High-efficiency V-belt transmission. Synchronous belt, oil-resistant, heat-resistant, durable, and low-noise.
● Deep groove ball bearing system ensures long-term use.
Impeller Configuration
The TOP3004 belt mixer comes standard with ZCX impellers (vertical) and KCX impellers (side-mounted). In addition to the standard impellers, Top can also provide more suitable impeller types based on the user's actual situation to ensure better mixing results for the user.
● The weight in the table is approximate and does not include the weight of the stirring shaft and impeller inside the container.
● The dimension L in the table is determined according to the user's container size.
● The DJ dimensions in the table are determined by Top based on the user's mixing purpose, mixing capacity, and physical parameters. Actual dimensions shall prevail.
● The weight of the motor is the approximate weight of a standard indoor motor and may vary depending on the motor manufacturer and type.
Remarks:
● The weight in the table is approximate and does not include the weight of the hanging and anchor bolts.
● The flange dimensions in the table can be replaced with European or American standards.
● The installation method shown is the size of the mounting pipe on the side of the stirring container that can be selected when side mounting.
● The weight of the motor in the table is the approximate weight of a standard indoor motor and may vary depending on the manufacturer and type of motor selected. Please refer to the actual design.
● If the stirring container wall is too thin and the strength is insufficient, please use reinforcing ribs or other auxiliary reinforcement measures.
| Tank Dimensions | Model | Speed (r/min) | Power (kw) | Installation Dimensions | ||||||
| D | D1 | D2 | N-∅Z | H | S | DXJ | ||||
| Φ14*7.5 | TOP3004/1 | ＞150 | 0.55～1.5 | 315 | 285 | 240 | 8-Φ14 | 580 | 40 | 45 |
| Φ19*7.5 | TOP3004/2 | ＞150 | 1.5～4.0 | 360 | 320 | 260 | 12-Φ18 | 600 | 50 | 45 |
| Φ23*7.5 | TOP3004/3 | ＞150 | 4.0～11.0 | 400 | 355 | 295 | 12-Φ23 | 650 | 60 | 55 |
| Φ26*7.5 | TOP3004/4 | ＞150 | 11.0～22.0 | 460 | 415 | 360 | 16-Φ23 | 880 | 75 | 65 |
| Φ30*7.5 | TOP3004/5 | ＞150 | 22.0～30.0 | 560 | 510 | 450 | 16-Φ27 | 964 | 85 | 65 |
