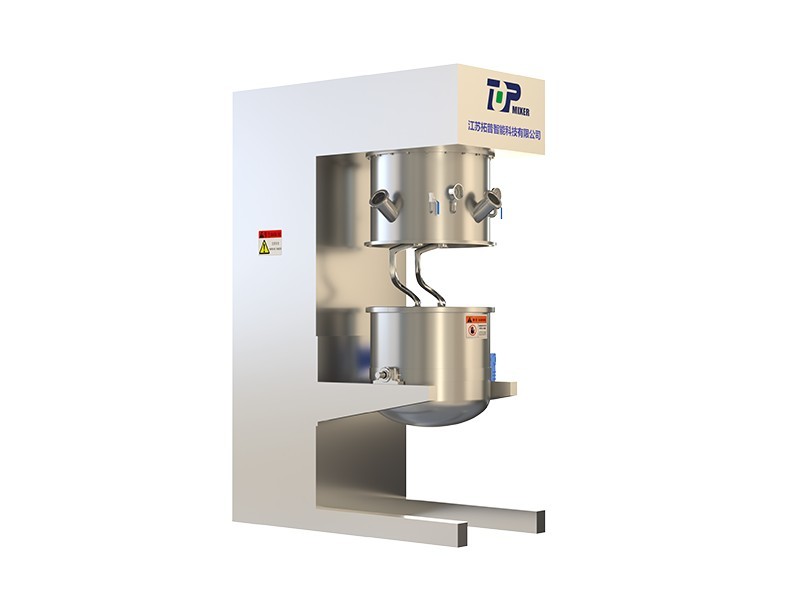

TOPH2022 series GG type industrial planetary mixing machine
The 22 series GG industrial planetary mixer is a new and efficient mixing and stirring device. The stirring paddle rotates around the axis of the kettle body while simultaneously rotating around its own axis, allowing for thorough mixing of materials within the kettle; The 22 series GG industrial planetary mixer has excellent mixing, stirring, reaction, dispersion, and dissolving capabilities, and is especially suitable for solid-solid and solid-liquid mixing. The equipment also features wall and bottom scraping functions, ensuring no dead angles or residue throughout the operation. The stirring paddles come in various forms, and the material-contacting parts can be sprayed with ceramic materials (zirconia/tungsten carbide/Teflon, etc.) to reduce metal ion contamination.
TOPH2022 series GG type industrial planetary mixing machine
The 22 series GG industrial planetary mixing machine is a new and efficient mixing and stirring equipment. The stirring paddle rotates around the axis of the kettle body while also rotating around its own axis, allowing the materials to be fully mixed in the kettle; the 22 series GG industrial planetary mixing machine has good mixing, stirring, reaction, dispersion, and dissolving functions, especially suitable for solid-solid and solid-liquid mixing. At the same time, the equipment also has wall-scraping and bottom-scraping functions, ensuring no dead corners or residue during the entire operation process. The stirring paddles come in various forms, and the parts that contact the materials can be sprayed with ceramic materials (zirconia/tungsten carbide/Teflon, etc.), reducing metal ion contamination.
Application Areas
This equipment is suitable for mixing materials in industries such as ceramics and polymer materials; production capacity can reach 2L-3000L.
Technical Parameters
| Model | Effective Volume (L) |
Design Volume (L) |
Stirring Power (kw) |
Revolution Speed (rpm) |
Rotation Speed (rpm) |
Dispersion Power (kw) |
Dispersion Speed (rpm) |
Lifting Stroke (mm) |
Vacuum Pump Power (kw) |
Weight Dimensions (mm) |
| TOPH2022-100 | 100 | 140 | 7.5-15 | 0-40 | 0-72 | 11～18.5 | 0-1450 | 650 | 1.5 | 3300kg 2350*1340*2050 |
| TOPH2022-200 | 200 | 280 | 15-22 | 0-40 | 0-72 | 18.5～22 | 0-1450 | 800 | 3 | 4300kg 2350*1500*2320 |
| TOPH2022-300 | 300 | 400 | 22-37 | 0-40 | 0-72 | 30～37 | 0-1450 | 900 | 3 | 5700kg 2700*1800*2520 |
| TOPH2022-500 | 500 | 665 | 30-45 | 0-30 | 0-55 | 37～45 | 0-1450 | 1050 | 4 | 6800kg 2700*2000*2600 |
| TOPH2022-650 | 650 | 800 | 37-45 | 0-30 | 0-55 | 37～45 | 0-1450 | 1100 | 4 | 8000kg 2700*2000*2900 |
| TOPH2022-800 | 800 | 1070 | 37-55 | 0-30 | 0-55 | 45～55 | 0-1450 | 1150 | 5.5 | 8500kg 3200*2000*3100 |
| TOPH2022-1000 | 1000 | 1320 | 45-90 | 0-30 | 0-55 | 55～75 | 0-1200 | 1200 | 7.5 | 11000kg 3400*2200*3300 |
| TOPH2022-1500 | 1500 | 1980 | 55-110 | 0-20 | 0-36 | 75～90 | 0-1200 | 1400 | 11 | 15000kg 3400*2600*3800 |
| TOPH2022-2000 | 2000 | 2550 | 75-132 | 0-20 | 0-36 | 90～110 | 0-1000 | 1550 | 11 | 20000kg 3800*2900*4100 |
| TOPH2022-3000 | 3000 | 3820 | 90-160 | 0-15 | 0-28 | 110～132 | 0-1000 | 1700 | 15 | 25000kg 4300*3200*4600 |
