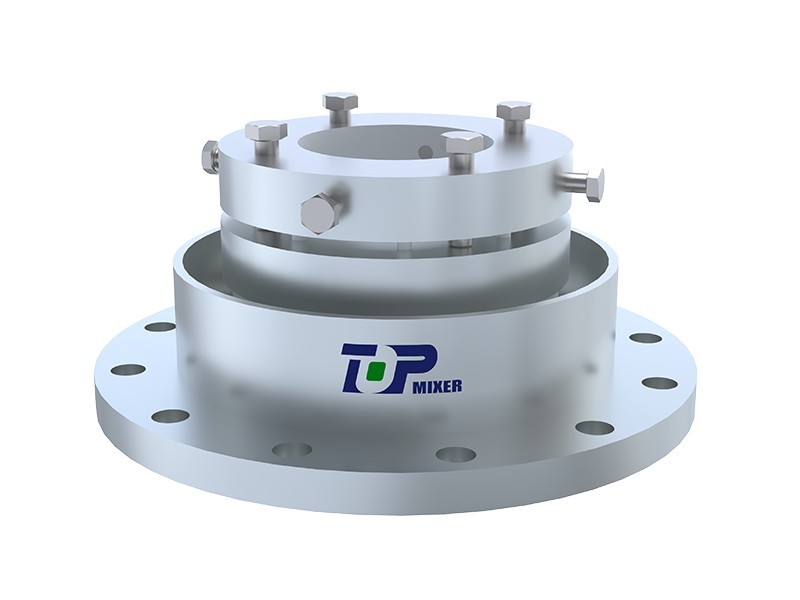

Type 204
Operating Parameters
Structure: Small spring, single end face, unbalanced type
Pressure: 0~0.8MPa
Temperature: -40~180℃
Speed: ≤500 rpm
Shaft diameter: 30~180mm
Applicable medium: Acid, alkali, oil, high molecular suspension
1. Anti-rotation pin
2. Clamping screw
3. Adjusting screw
4. Fixed adjusting ring
5. Seal ring
6. Small spring
7. Spring seat
8. Thrust ring
9. Dynamic ring seal
10. Dynamic ring
11. Static ring
12. Hexagon screw
13. Static ring pressure plate
14. Oil pan
15. Static ring gasket
Type 204 Unit: mm
| d | d1 | d0 | D | L1 | L2 | L3 | n-φ |
| 30 | 116 | 150 | 180 | 20 | 92 | 130 | 4-18 |
| 40 | 135 | 170 | 225 | 20 | 92 | 130 | 4-18 |
| 45 | 164 | 200 | 235 | 22 | 94 | 130 | 8-18 |
| 50 | 164 | 200 | 235 | 22 | 94 | 130 | 8-18 |
| 60 | 164 | 200 | 235 | 22 | 94 | 130 | 8-18 |
| 65 | 164 | 200 | 235 | 22 | 94 | 130 | 8-18 |
| 80 | 188 | 225 | 260 | 22 | 94 | 138 | 12-18 |
| 90 | 220 | 255 | 290 | 24 | 94 | 138 | 12-18 |
| 95 | 220 | 255 | 290 | 24 | 96 | 138 | 12-18 |
| 100 | 245 | 280 | 315 | 24 | 96 | 138 | 12-18 |
| 110 | 245 | 280 | 315 | 24 | 96 | 138 | 12-18 |
| 120 | 245 | 280 | 315 | 24 | 96 | 140 | 12-18 |
| 125 | 245 | 280 | 315 | 24 | 96 | 140 | 12-18 |
